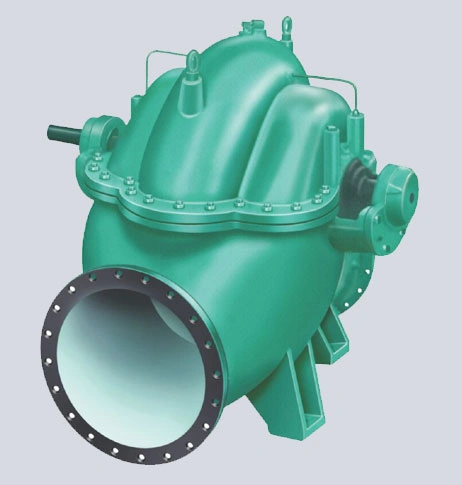

Horizontal Split Case Pump

Highly efficient Pumping solutions for Building and Commercial services

Eram Pumps

"Dry Rotary Pumps- Horizontal split case pump"

• Technical Data:

   • Qmax                : m3/hr max 18000
   • Hmax                 : 270 m
   • Temperature    : up to 120°C; Higher on request
   • Delivery Size    : DN 50 - DN 400


• Application:

ERAM Horizontal split case pump are used in various applications like ....

   • Water supply to high rise building, housing complex, villas / farm houses / gardens / nurseries
   • Water supply
   • Fire fighting and irrigation
   • Marine desalination
   • Ports and docks
   • General industry


• Feature:

   • ERAM Horizontal split case pump has various features like ...

    • Mounting: Centre line / vertical,
   • drive connection: direct / cardan shaft bush bearing
   • Staggered vane design for fan pump application and special suction/ delivery orientation                       instrumentation & controls


   • Design:

   • Mounting: Inline horizontal
   • Stages: One / two / three stage single/ double suction impellers
   • Grease / Oil lubricated antifriction bearings
   • Mechanical seal / gland packing


Horizontal Split Case Pump
